TNCS-0039 - External Drive Mount Point Problem

November 2, 2017

INTRODUCTION

ChronoSync 4.8.x, alongside macOS High Sierra is demonstrating a problem with maintaining connections to external drives. The macOS connects each external drive using a 'mount point.' These mount points are all created in the hidden "/Volumes" folder on the startup volume. When using High Sierra and ChronoSync 4.8.x, these 'mount points' can become confused and a folder can be substituted in lieu of the connection to the external drive in the '/Volumes' folder. We are naming this problem a 'False Mount Point.' This problem can result in files being backed up normally, but the destination actually being a subfolder of the '/Volumes' folder instead of actually being copied to the external drive.

ChronoSync 4.8.3 corrects this problem and helps identify the problem with a new warning displayed in the 'Readiness' section of the Setup Panel of the Sync Task. If you think you are experiencing this problem, contact support.

The remainder of this Tech Note explains how to remedy the situation and ensure your backups are working correctly.

IDENTIFYING A FALSE MOUNT POINT

The key is that the target description will show a path beneath the "Volumes" folder on your system hard drive:

identify false mount point

Here "Macintosh HD" is the system hard drive (the one that was booted) and the target path is rooted at "Volumes." It should really appear as: "Users/Shared/Files Test 2" on "G-Drive HFS."

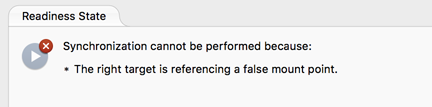

ChronoSync v4.8.3 will also show the following Readiness Error, which will prevent the synchronization from being run until the problem is corrected:

readiness warning false mount

CORRECTING THE PROBLEM

To fix the problem, simply re-specify your target. Click "Choose…" and navigate to the intended drive/folder. The target selector sheet will probably default to the correct location but double-check before selecting it. The result of your selection should look something like this:

correct target

Notice that the drive icon correctly represents the external drive and that the description shows a path relative to "G-Drive HFS," which is the correct volume name. Save your changes and everything should be fine from here on.

CLEANING UP THE MESS

In some circumstances, it is possible that after you began incorrectly referencing your target, an actual false mount point was created. This could have happened if you lost connection to your target volume during a task run. To make sure you have not encountered this, perform the following steps.

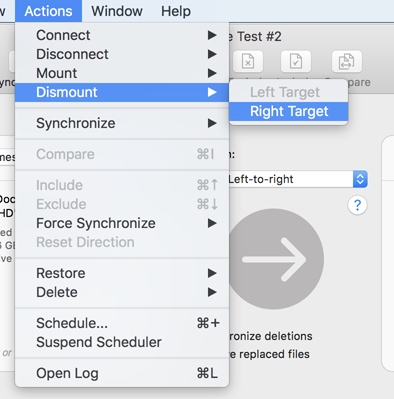

  1. Dismount the external volume that was being incorrectly referenced. You can do this from Finder or within ChronoSync by choosing "Dismount" from the "Actions" menu:
dismount incorrect target

In ChronoSync, your target will now appear like this:

can't locate target
  1. Open a new Finder window and type COMMAND-SHIFT-G on the keyboard.
Volumes list

This opens the "Go to folder" sheet window in which you should type "/Volumes" and click "Go."

  1. You will now see a list of volumes/mount-points that exist on your system:
Volumes

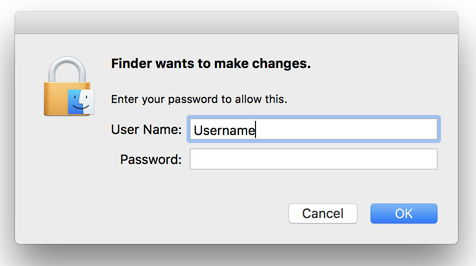

  1. Any folders that have variations of the name of the volume which you ejected are false mount points. In this case, the volume we ejected was named "G-Drive HFS." There are three variations of that name listed. You should select these folders in Finder and drag them to the Trash. You will need to supply your administrator credentials to do this.
credentials
  1. After dragging these folders to the trash, you should "Empty Trash" in the Dock.

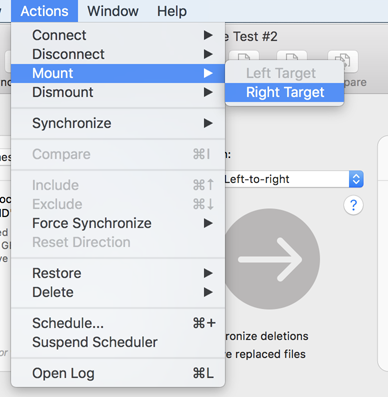

  2. Re-mount your external Volume. You can do this in ChronoSync by choosing "Mount" from the "Actions" menu:
Mount Volume
  1. Your target should now be properly located. Run the task just to make sure everything is up-to-date.

CONCLUSION

If you have further questions concerning this 'False Mount Point' issue, please contact support and we'll be happy to help!

REVISION HISTORY

Nov-02-2017 - Created from Scratch.
